Accessories & Equipment / RedDirt 100L Diesel Air Compressor
Accessory detail

RedDirt 100L Diesel Air Compressor

Heavy-Duty Diesel Air Compressor for Commercial & Field Use

Accessory detail Cleaner setup Trailer-ready gear
  • 7HP diesel-powered air compressor
  • Heavy-duty cast iron, twin-cylinder air pump
  • High-pressure output for demanding applications
  • Low engine and compressor RPM for long service life
  • Electric start with included battery
  • Twin V-belt drive system for efficient power transfer
  • Large 100L steel air tank
  • Multiple air outlets for flexible use
  • Strong steel frame with forklift lifting points
  • Suited to commercial, mining, and field service use

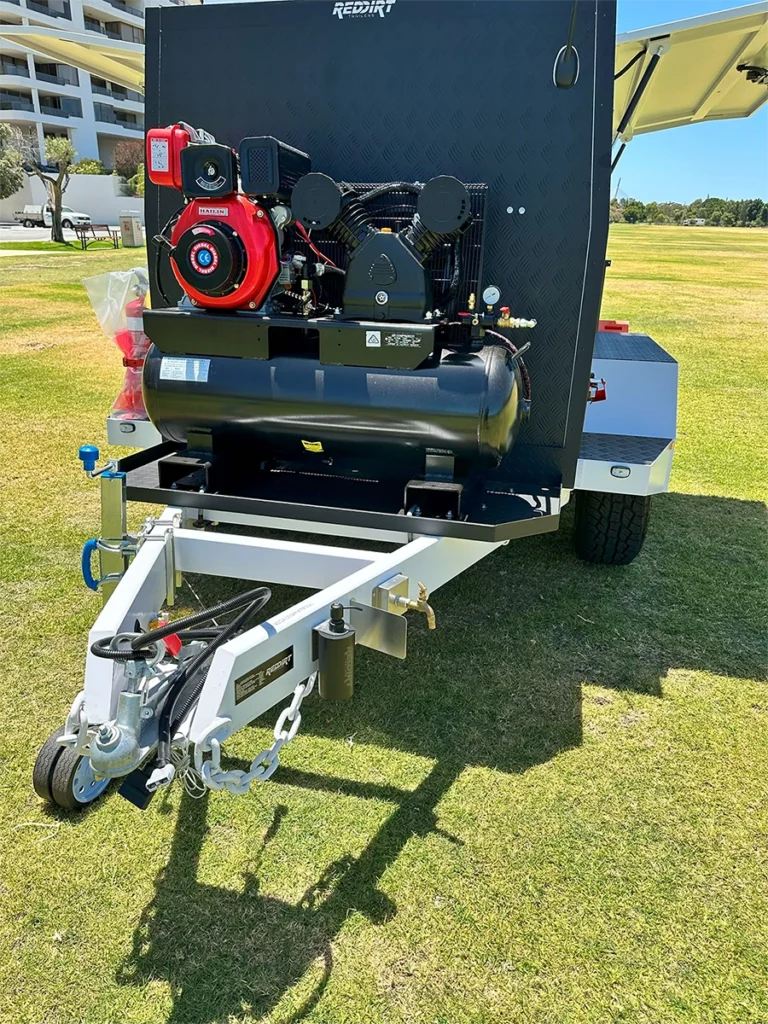

Mine spec diesel air compressor mounted on the RedDirt service trailer for on-site air supply
Trailer-focused Accessories chosen to support real trailer workflows.
Cleaner rig The right add-on makes the whole setup feel finished.
Simple to action See the item, then enquire directly with no shop clutter.
Mine spec diesel air compressor mounted on the RedDirt service trailer for on-site air supply

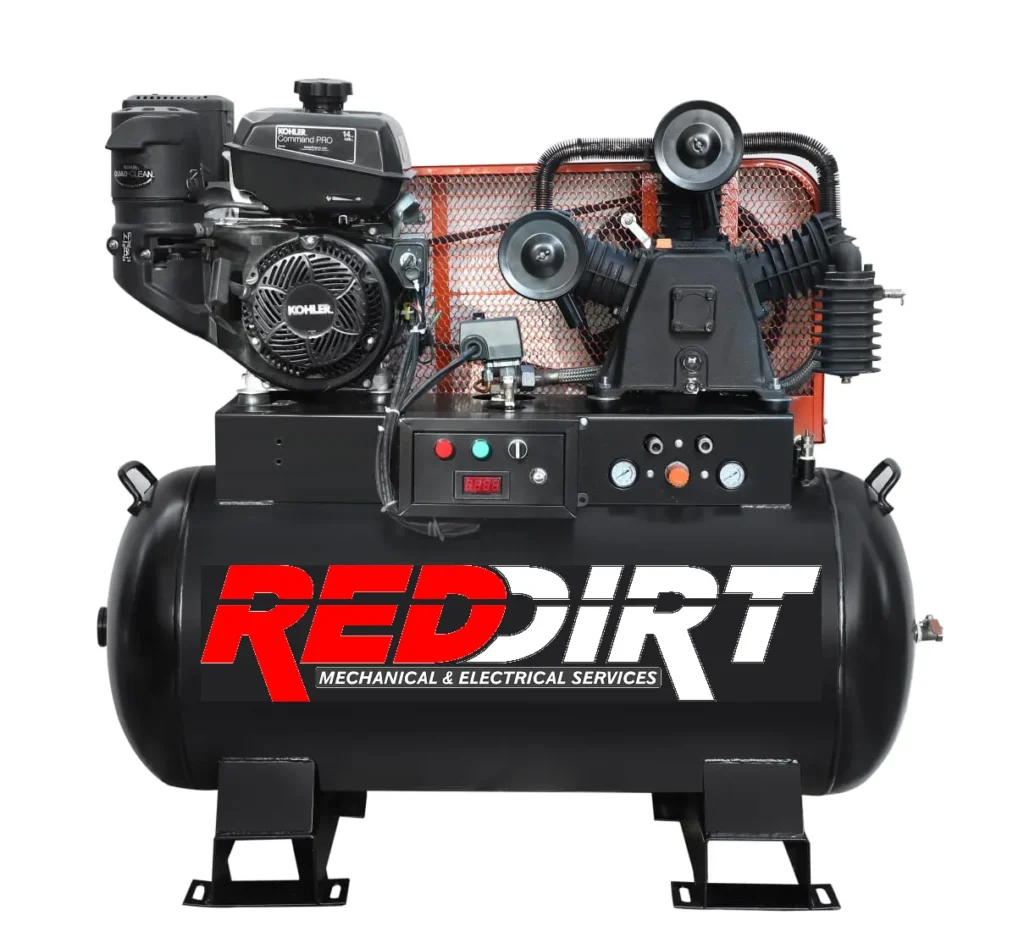

The RedDirt 100L Diesel Air Compressor is a serious, industrial-grade air solution built for demanding commercial, mining, and field service environments. Powered by a robust diesel engine and paired with a cast-iron, twin-cylinder compressor pump, this unit delivers consistent high-pressure air where reliability is critical.

Designed for long run times and harsh conditions, the low-RPM diesel engine keeps operating temperatures down while delivering strong airflow and pressure. A heavy-duty steel tank, reinforced frame, and forklift-ready design make this compressor well suited to workshops, service trailers, and remote worksites.

Built to work hard day after day, the RedDirt 100L Diesel Air Compressor is a dependable backbone for operations that rely on compressed air.

Key features
  • 7HP diesel-powered air compressor
  • Heavy-duty cast iron, twin-cylinder air pump
  • High-pressure output for demanding applications
  • Low engine and compressor RPM for long service life
  • Electric start with included battery
  • Twin V-belt drive system for efficient power transfer
  • Large 100L steel air tank
  • Multiple air outlets for flexible use
  • Strong steel frame with forklift lifting points
  • Suited to commercial, mining, and field service use
Specifications
  • Engine Power: 7 HP
  • Engine Type: 4-stroke diesel, single cylinder, direct injection
  • Cooling Method: Air-cooled
  • Fuel Type: Diesel
  • Engine Speed: 3000 RPM
  • Starter System: Electric start (battery included)
  • Battery: 12V 18Ah
  • Maximum Pressure: 145 PSI / 10 Bar
  • Compressor Pump:
  • Cast iron construction
  • Diesel piston type
  • Twin-cylinder design
  • Compressor drive: Twin V-belt
  • Compressor speed: 770 RPM
  • Air Delivery:
  • Displacement: 20 CFM (566 LPM)
  • Free Air Delivery: 15 CFM (425 LPM)
  • Tank & Outlets:
  • Air Tank Capacity: 100 L
  • Outlets:
  • 1 × 1/2" ball valve
  • 1 × 1/4" ball valve
  • Pressure Gauge: High-pressure MPA / PSI gauge
  • Dimensions & Weight:
  • Length: 121 cm
  • Width: 52 cm
  • Height: 111 cm
  • Weight: Approx. 208 kg
